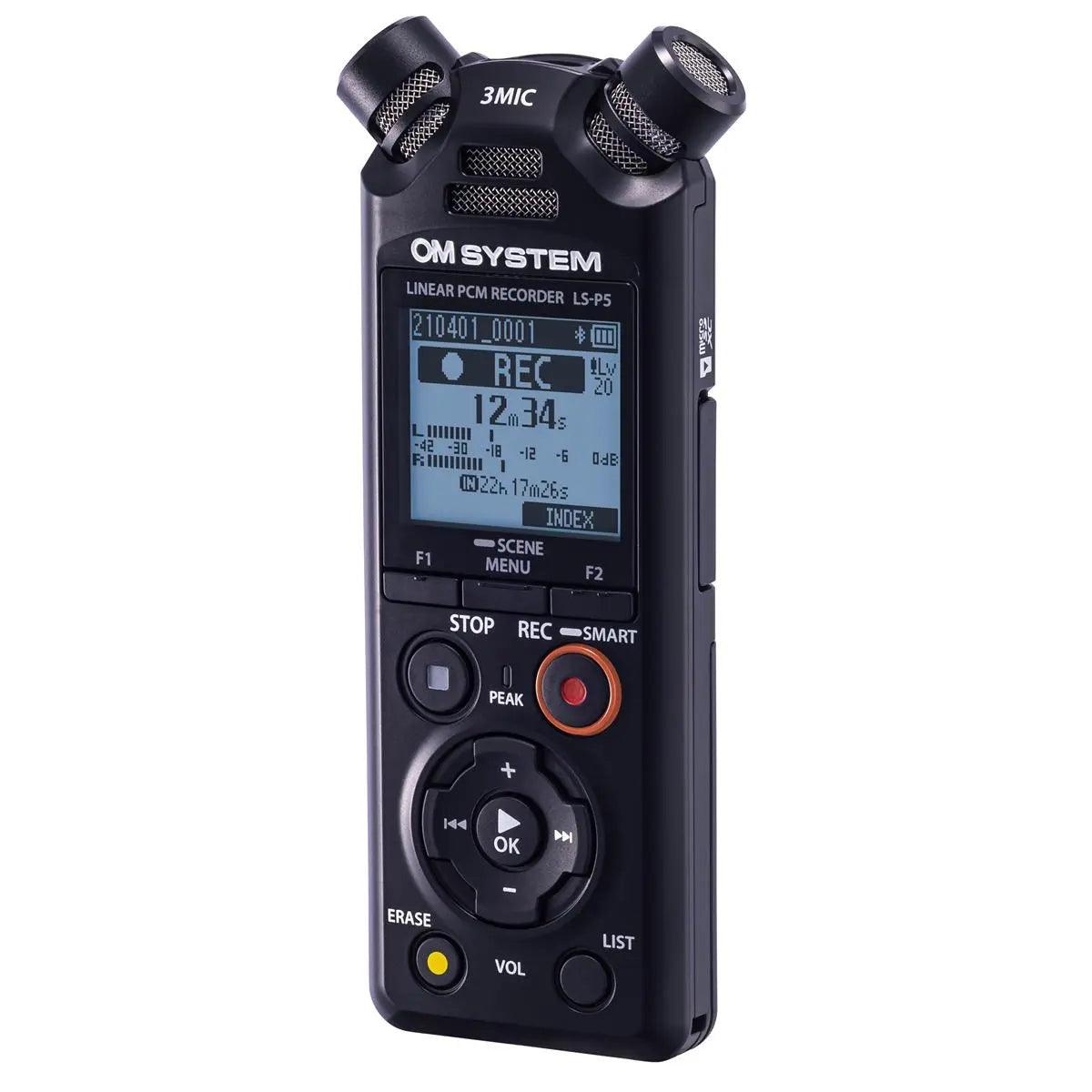

About Olympus LS-P5
The Olympus LS-5 is a solid-state stereo audio recorder with 16GB internal storage and support for microSDXC card expansion up to 2TB
The LS-P5 stand-alone audio recorder can also be connected as an external microphone to mirrorless OM SYSTEM cameras with an external microphone input using special accessories, such as the optional KA-335 3.5mm audio cable. With the optional SM2 Shock Mount, the audio recorder can be attached to the hot shoe of the camera, thanks to which the operating noise and possible vibrations of the machine can be effectively filtered out when recording the audio material.
The optional WJ-2 wind deflector, which eliminates wind noise, can be an indispensable accessory for outdoor recordings. In addition, if we use the LS-P5 sound recorder to record sounds with the camera, the sound material can be available as a high-quality original sound source in PCM format, which can later be incorporated into the edited film during video editing work on a computer. The Slate Tone and Test Tone functions make it easier to edit the sound of videos.
Versatility
One device. Countless uses.
Next Generation Sound Quality
Sound with big impact. Made possible by the new and unique microphone system.
Bluetooth Monitoring & Control
Capture audio from a distance, untethered by cables.
Size & Connectivity
A body that doesn't weigh you down. How ever you record, you need the right connections.
An Audio System
Not just a recorder. An ecosystem for audio capture.
Olympus LS-P5 Features
- 3 Directional Microphones (Tresmic II)
- 96kHz/24-bit Hi Res Audio
- PCM, FLAC and MP3 recording
- Auto (Smart Mode) and Manual Level Settings
- Noise Cancelling Mode
- Bright Sound mode offers clearer recordings of the spoken word
- Low Cut filter removes low frequencies from audio to reduce ambient noise
- Built in Bluetooth to monitor and control recording at a distance of up to 32 feet
Olympus LS-P5 Specifications
- Microphone
- 3 Directional Microphones
- High Quality Sound
- Tresmic II
- Max Sound Pressure Level
- 125dBspl (1% distortion)
- Recording Format
- PCM / MP3 / FLAC
- Playback Format
- PCM / MP3 / FLAC
- Internal Memory
- 16GB (+microSDHC/microSDXC external)
- Over Dubbing Function
- Yes
- Signal to noise ratio
- Line input 92dB
built-in microphone (stereo) 57dB
built-in microphone (center) 60dB - Level adjustment with pre-recording
- Yes (SMART mode)
- Automatic sensitivity adjustment
- Yes
- Manual recording level setting
- Yes
- Recording level setting (external mic)
- Yes
- Limiter/Compressor
- Limiter (music/voice)
- Pre-recording function
- Yes
- DRC recording (Dynamic Range Control)
- Voice chaser (Intelligent auto)
- VCVA
- Yes
- Recording monitor On/Off
- Yes
- Noise reduction filter
- Low cut filter
- 2-Mic Noise Cancelling
- Yes
- Sound Effect (while recording)
- Yes (Bright sound)
- Zoom microphone
- Yes
- Microphone select (ON/OFF)
- Yes (works with directional adjustment, Off when directional set to 00)
- Rec Scene
- 9 Types
Lecture/Conference/Meeting/Dictation/Nosiy situation/Music/DNS/custom 1/custom 2/OFF - Timer
- Yes (Recording start/end)
- Slate tone
- Yes
- Test tone
- Yes
- Normalize
- Yes
- Fade in/out
- Yes
- Trimming
- Yes
- Partial erase
- Yes
- File divide
- Yes
- Edit file name (Template)
- Yes
- Edit file name (Original)
- Yes (using smartphone app)
- Edit folder name (Template selectable)
- Yes
- Edit folder name (Original)
- Yes (using smartphone app)
- Create folder (Template)
- Yes
- Create folder (Original)
- Yes (using smartphone app)
- Playback speed control
- 0.5 to 3.5 times
- Repeat
- A-B-C repeat
- Equalizer
- 4 types
- DRC playback (Dynamic Range Control)
- Voice Balancer
- Noise cancel while playback
- Yes
- Index
- Yes
- Calendar Search
- Yes
- Intro play
- Yes (3/5/10 sec.)
- Power requirements
- 2 AAA batteries
- Battery life (Recording)
- (Linear PCM) Alkaline/NiMH
96kHz/24bit: Approx.29hours/20hours
88.2kHz/24bit: Approx.31hours/21hours
48kHz/24bit: Approx.47hours/31hours
48kHz/16bit: Approx.54hours/36hours
44.1kHz/24bit: Approx.50hours/33hours
44.1kHz/16bit: Approx.56hours/37hours
44.1kHz mono: Approx.59hours/39hours - Battery life (Recording) (Contd.)
- (MP3) Alkaline/NiMH
320kbps: Approx.62hours/40hours
128kbps: Approx.63hours/42hours
64kbps mono: Approx.64hours/42hours
(FLAC) Alkaline/NiMH
96kHz/24bit: Approx.23hours/16hours
88.2kHz/24bit: Approx.24hours/17hours
48kHz/24bit: Approx.40hours/27hours
48kHz/16bit: Approx.43hours/29hours
44.1kHz/24bit: Approx.41hours/28hours
44.1kHz/16bit: Approx.46hours/31hours
44.1kHz mono: Approx.46hours/32hours - Speaker
- 18mm
- Maximum speaker output
- 230mW
- Input jack
- 3.5mm x1 (MIC/Line in)
- Earphones jack
- 3.5mm x1 (EAR)
- Maximum headphone output
- 3mW+3mW
- Internal battery charge
- Yes

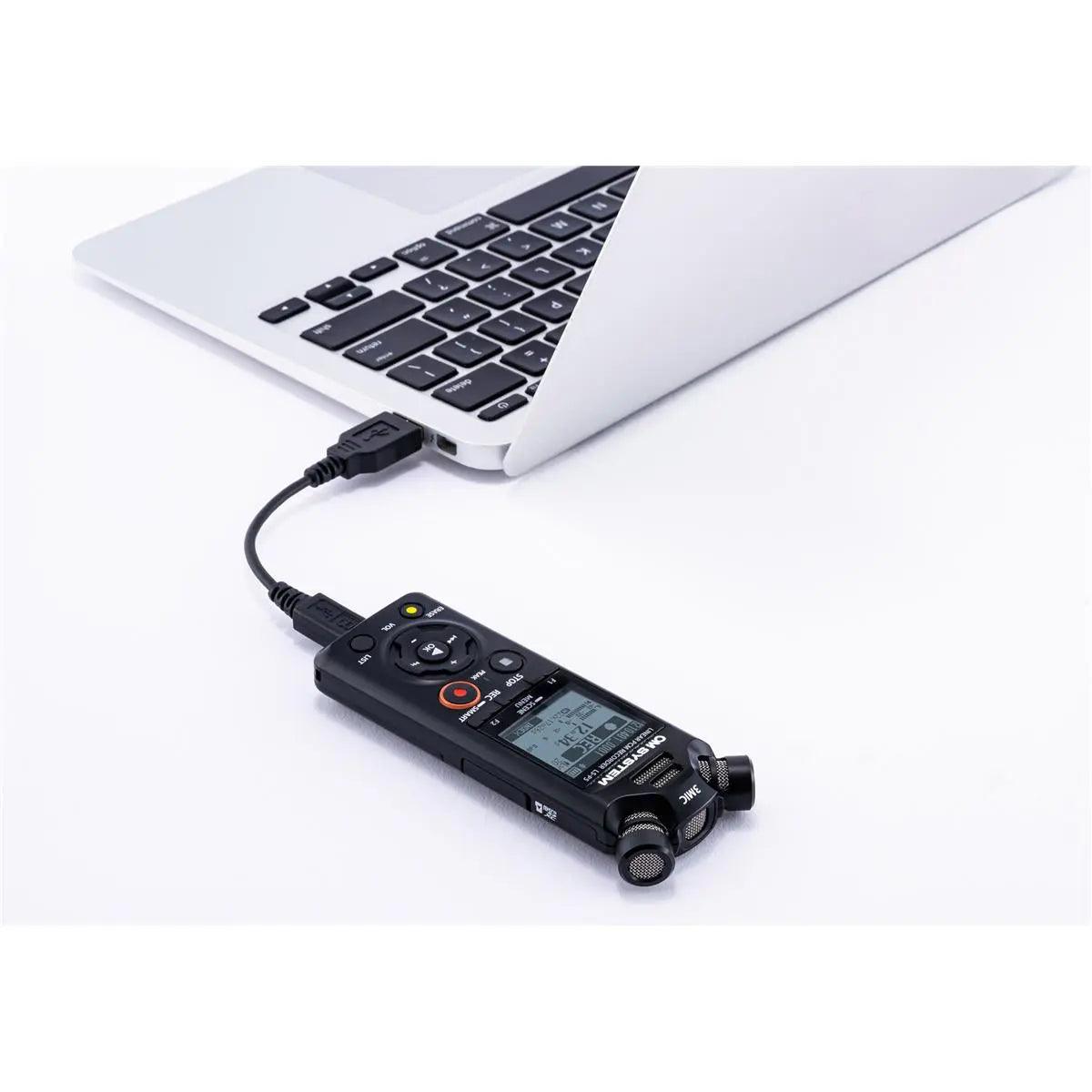

- USB
- USB2.0 microB
- Compatible Bluetooth version and profile
- Ver.5.0, A2DP, AVRCP
- Bluetooth earphones to monitor recording
- Yes
- Using smartphone & Bluetooth device
- Yes
- Smartphone app. Availability
- Android/iOS
REC/REC_PAUSE/STOP/INDEX/Recording level/File name edit/Wave form display/various settings - Tripod
- Yes
- Battery Info
- Required, Included
- Battery Material
- Nickel Metal Hydride
- Battery Type
- AAA
- Battery Quantity
- 2
- Dimensions (W x H x D)
- 1.55 x 4.41 x 0.63" (39.6 x 112.2 x 16.1mm)
- Weight
- 2.75 oz (78g) (Including battery
